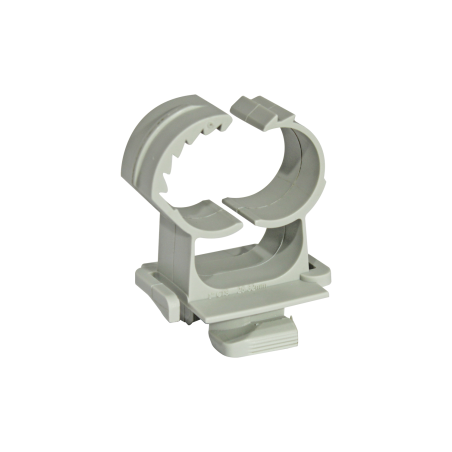

Smart Strut Clamp SSC

Fix pipes and conduits directly to strut channels without tools

Product overview

Increase your productivity with the Smart Strut Clamp SSC and complete your pipe installations up to 5 times faster.

To install the SSC all you have to do is twist and lock the clamp on the strut channel and then push in the pipe! As soon as you push the tube you will be able to close several clamps at the same time without any tools!

Made of nylon the clamp provides greater performance against expansion from the temperature contrast of the tubes and has been UL and RoHS approved.

Use the SSC with our fiberglass channels for an enhanced installation: light, resistant and non-corrosive.

Download documents

List of references

Reference

918SSC

925SSC

932SSC

942SSC

955SSC

965SSC

Diameter [in] EMT

1/2"

3/4"

1 1/4"

1 1/2" - 2"

Diameter [in] RIG

1/2"

3/4"

1 1/2"

Length [in]

1.89

2.205

2.559

3.15

3.74

4.291

Height [in]

1.811

1.89

2.244

2.835

3.228

Width [in]

1.614

Color

Grey

Material

Nylon

Packaging units

Packaging type

Box

6 / 6 references

Applications

Plastic pipes
Heating pipes
PVC pipes
Multilayer pipes
Copper pipes

Further specifications

Key features:

Closes automatically when pipe is pushed in; saves time and money

Halogen-free
Thermal and electrical insulation

Base materials

Suitable materials

Steel beam
