SMART TAP CLAMPS
Screw directly to any surface
Screw pipes to surfaces in seconds
Made with high-quality nylon, the Smart Tap Clamp can be fixed quickly with the BTS T or any other concrete screw, saving time and money.
Tighten up your pipes in 3 steps
Screw tubes and conduits to surfaces with tapcons. Cut your installation times in half

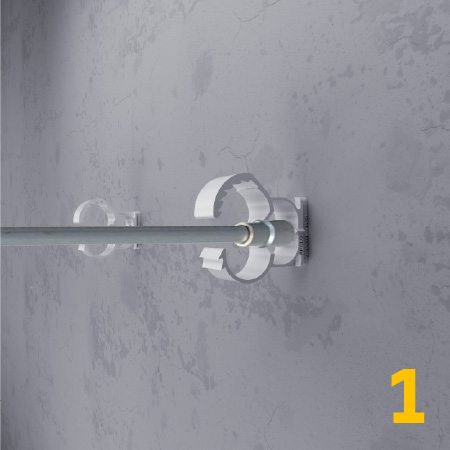

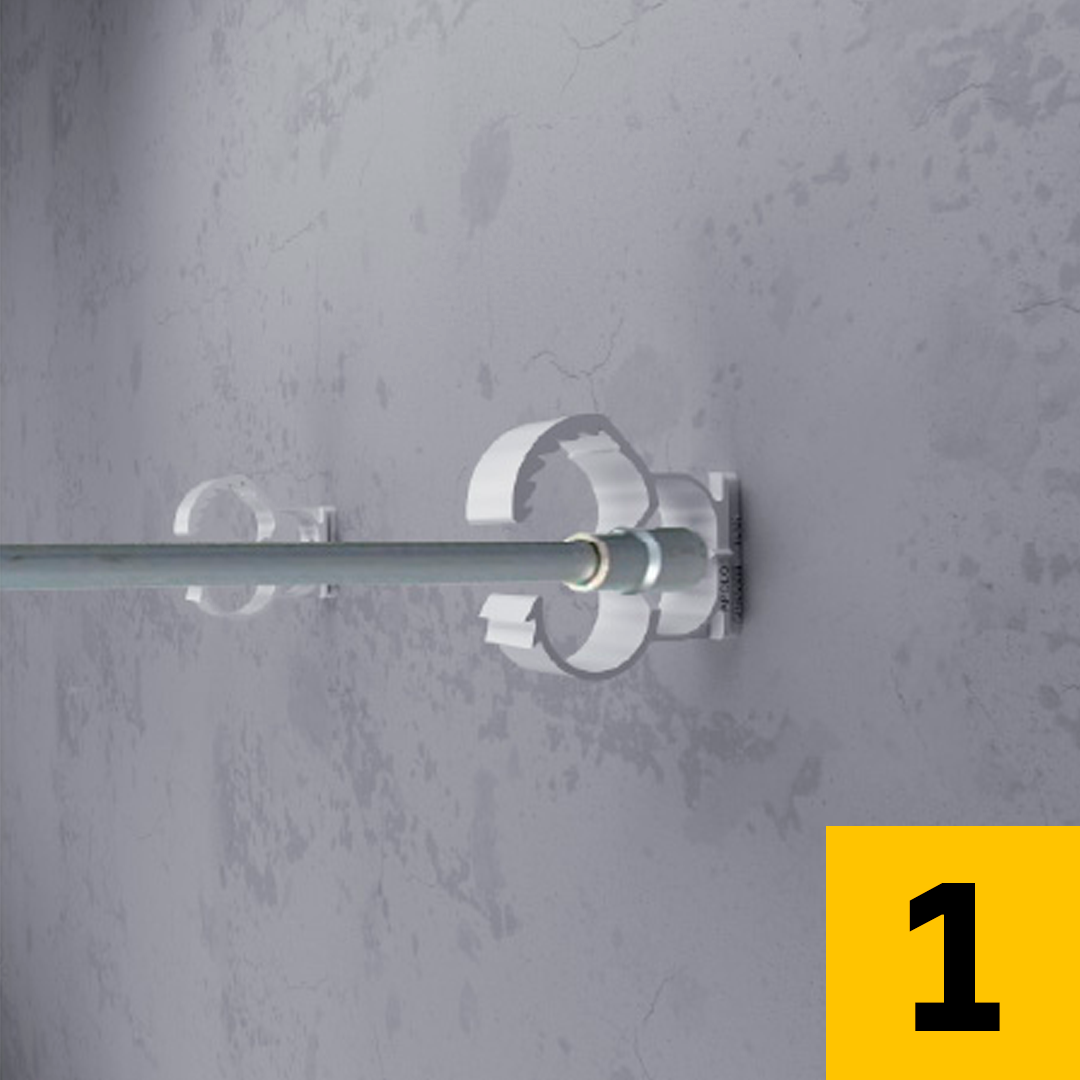

Screw
Fix to the surface

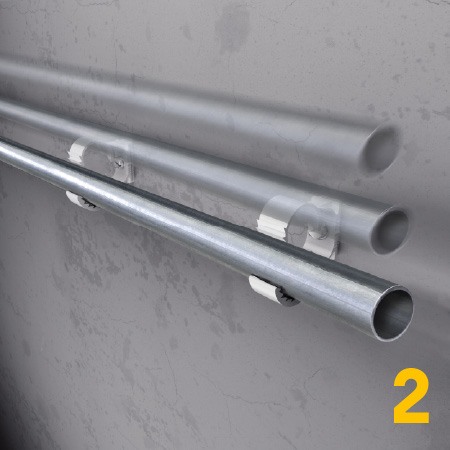

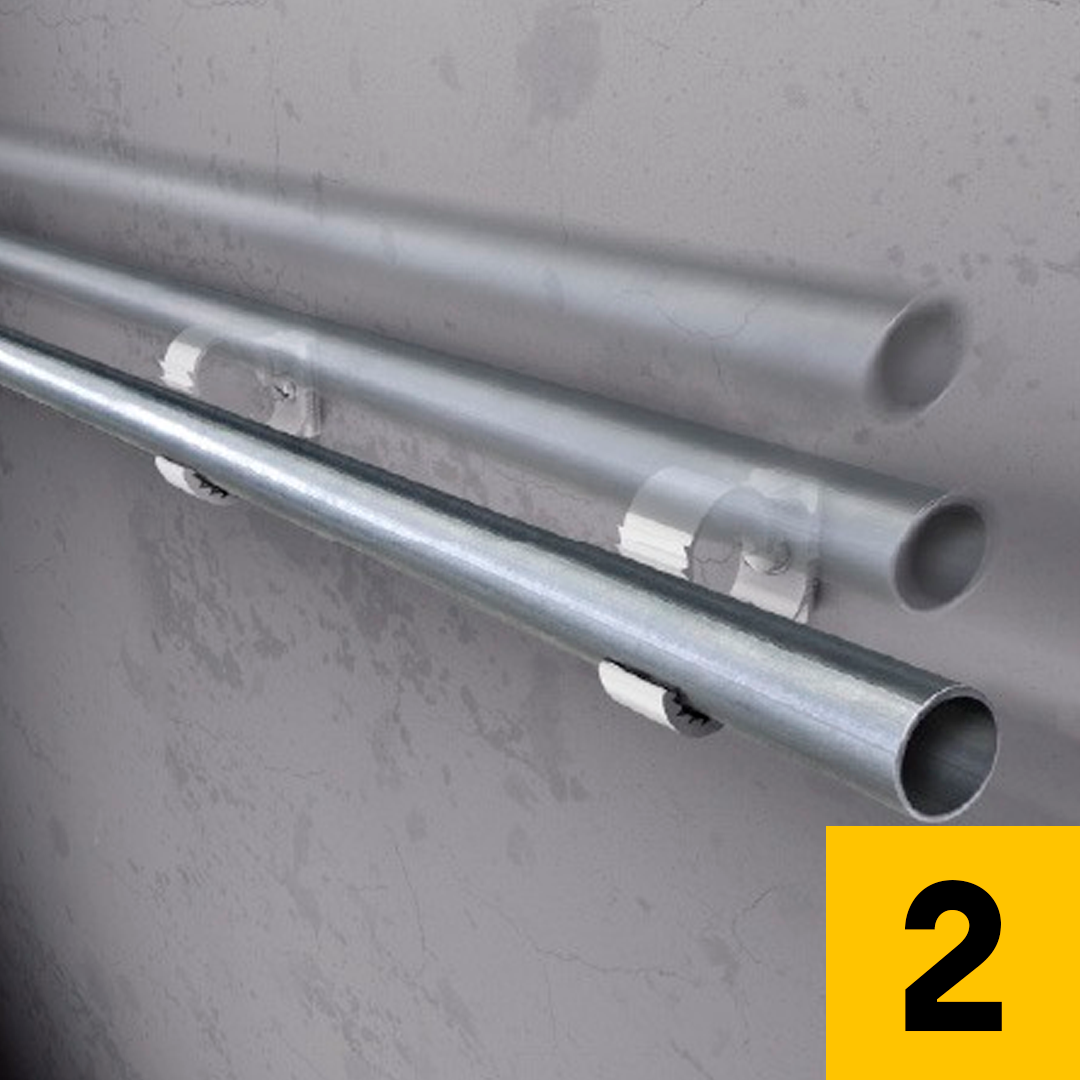

Place
Add the conduit

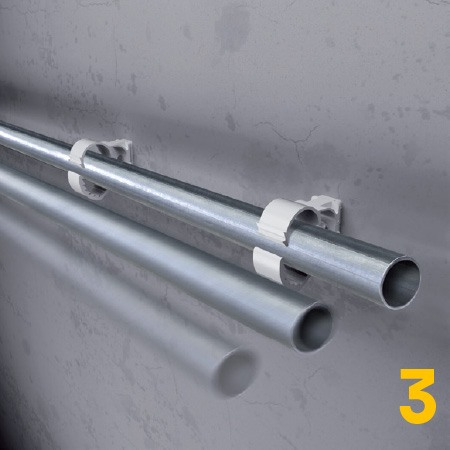

Lock
Push into place

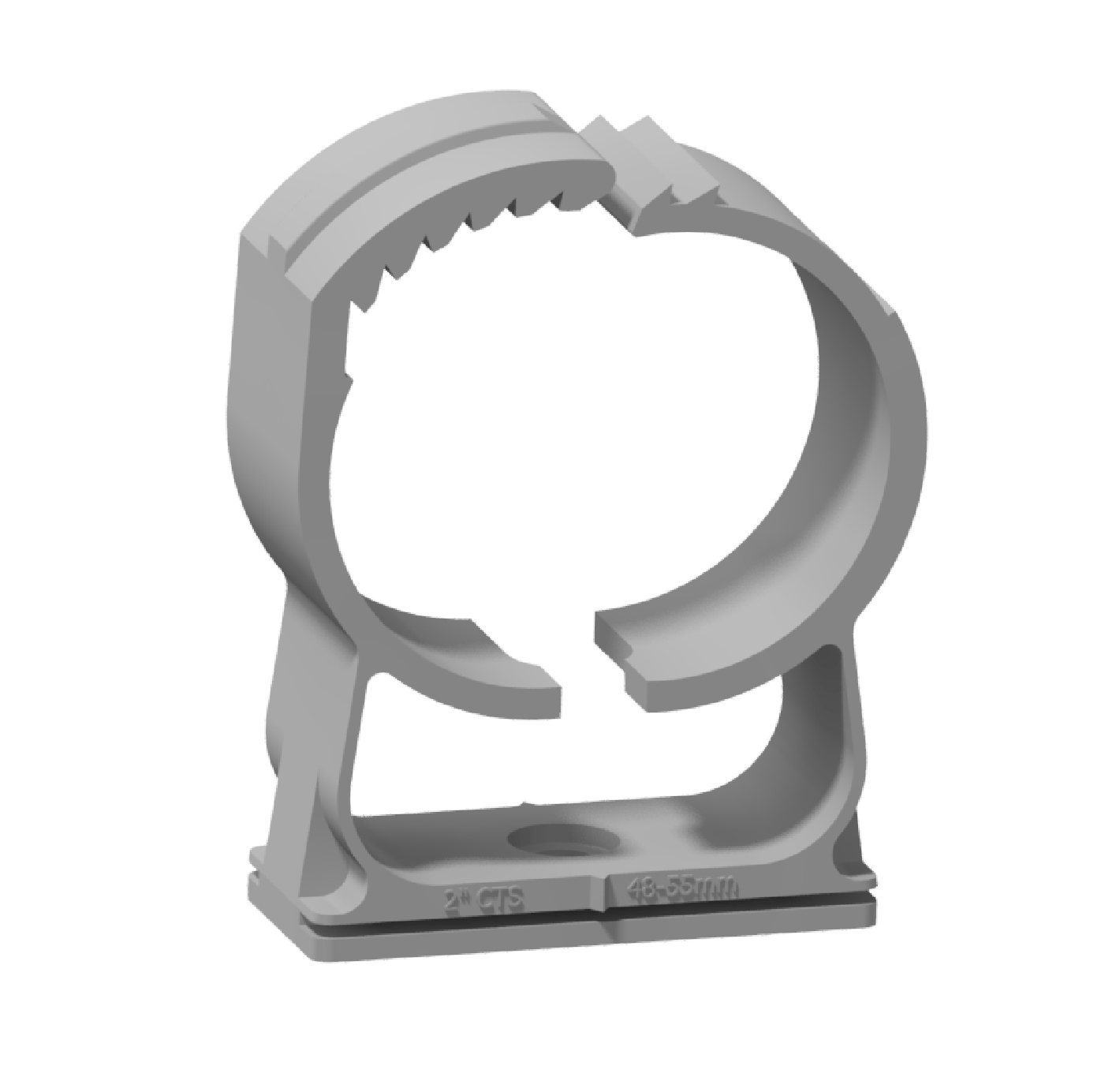

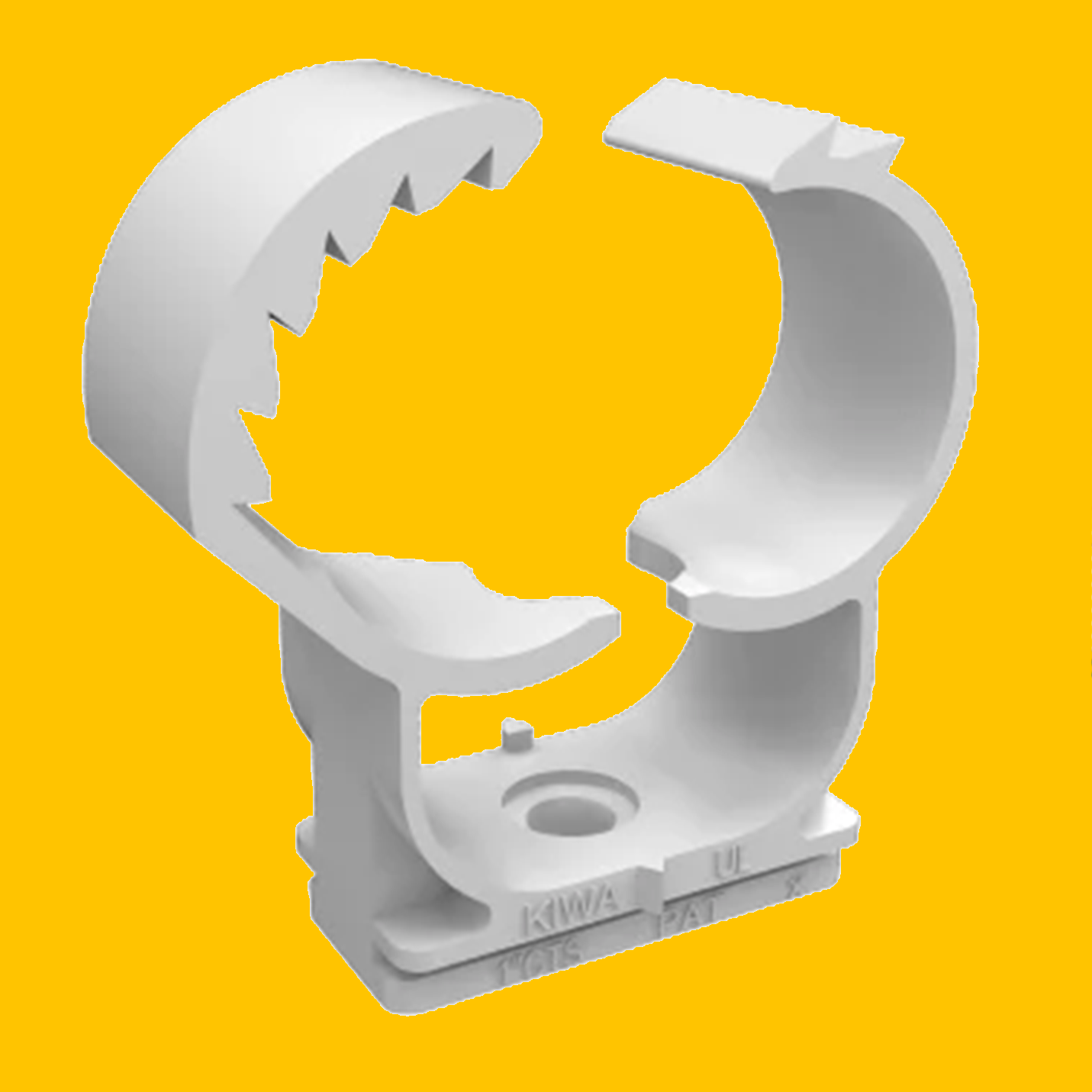

About the Smart Tap Clamp

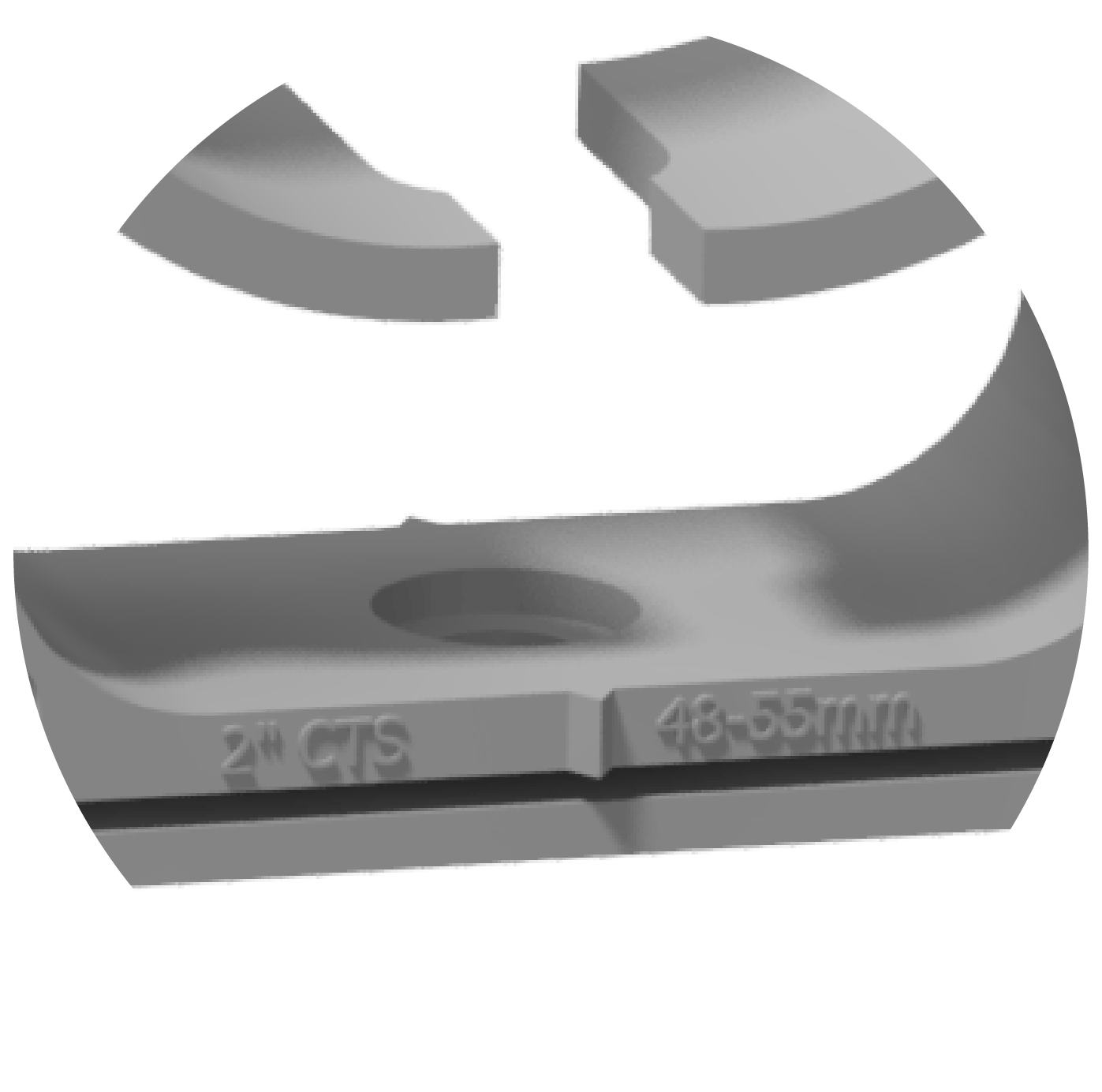

Fixing surface-mounted wiring and conduits anywhere can be achieved easily and fast with CELO's STC. Designed with safety and productivity in mind, the Smart Tap Clamp saves you installation time requiring only a ¼" concrete screw or drywall screw to fasten it directly on the base material.

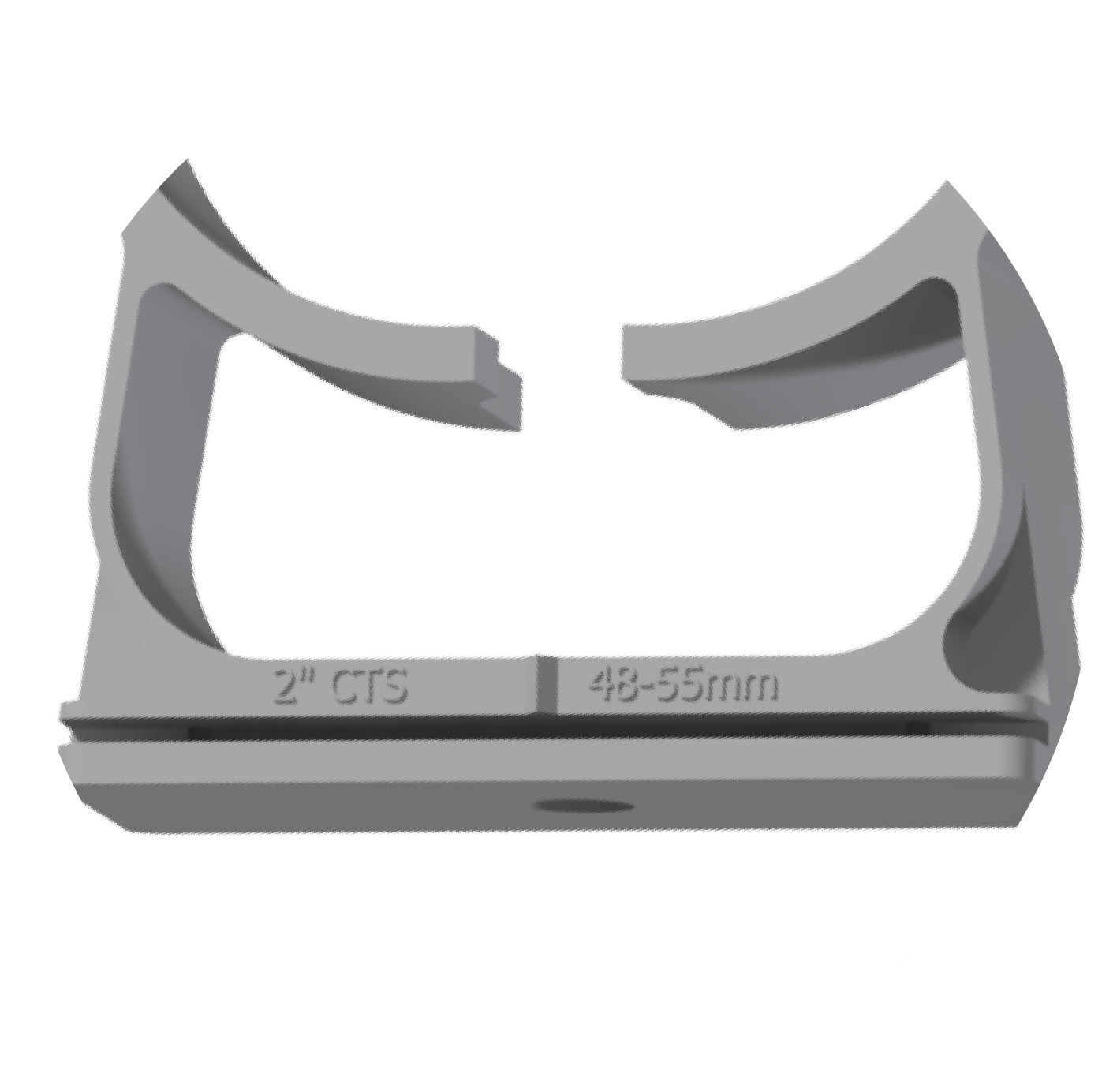

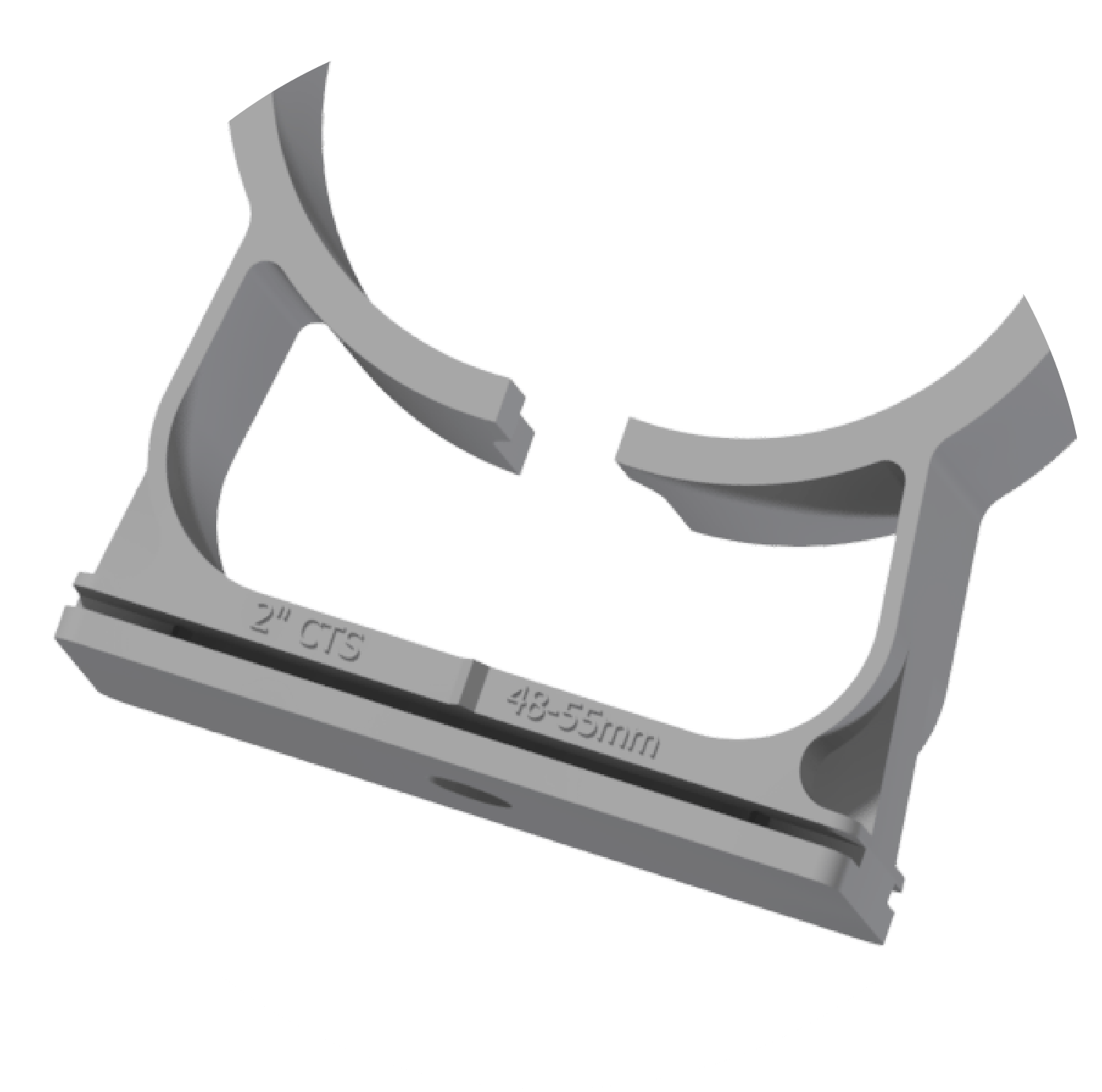

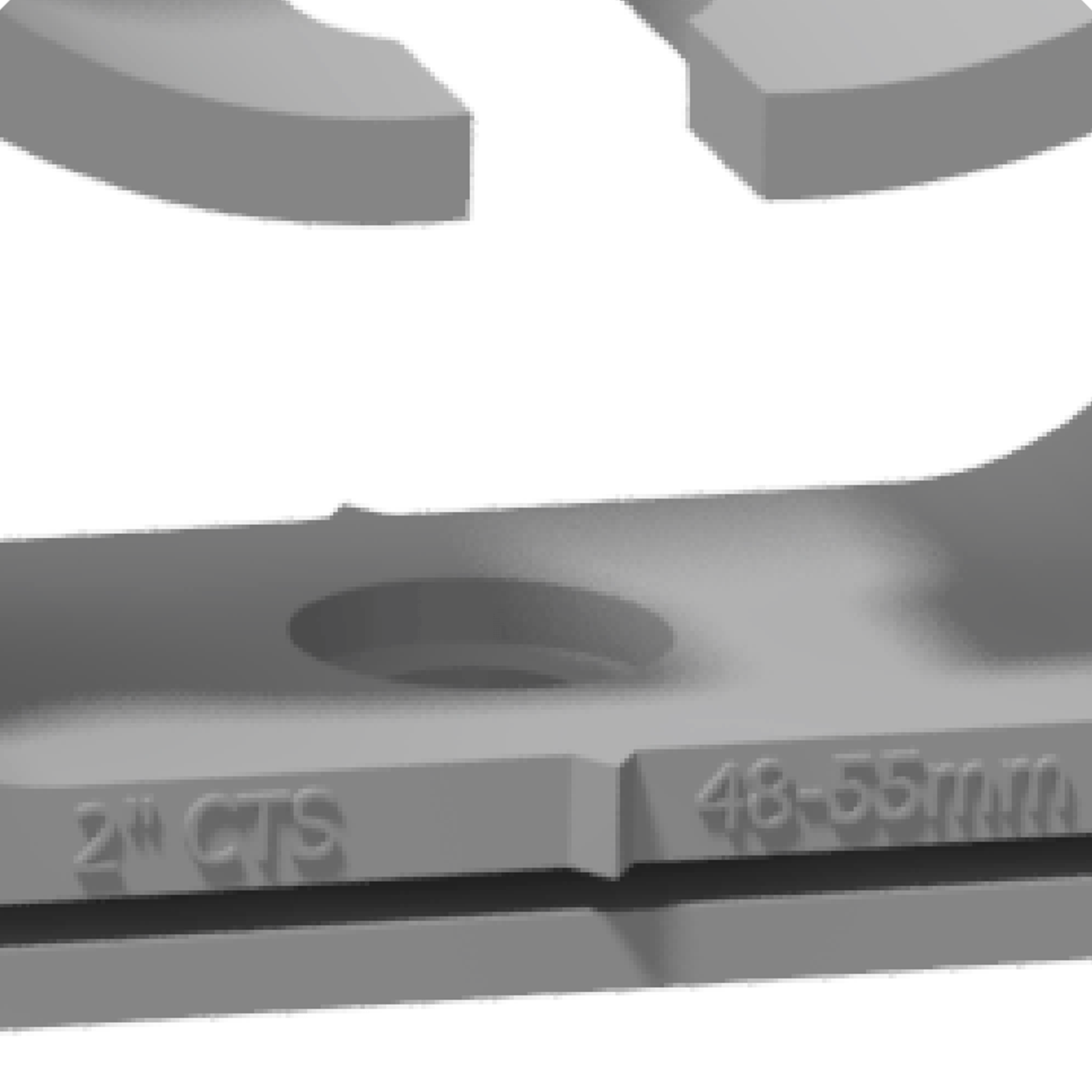

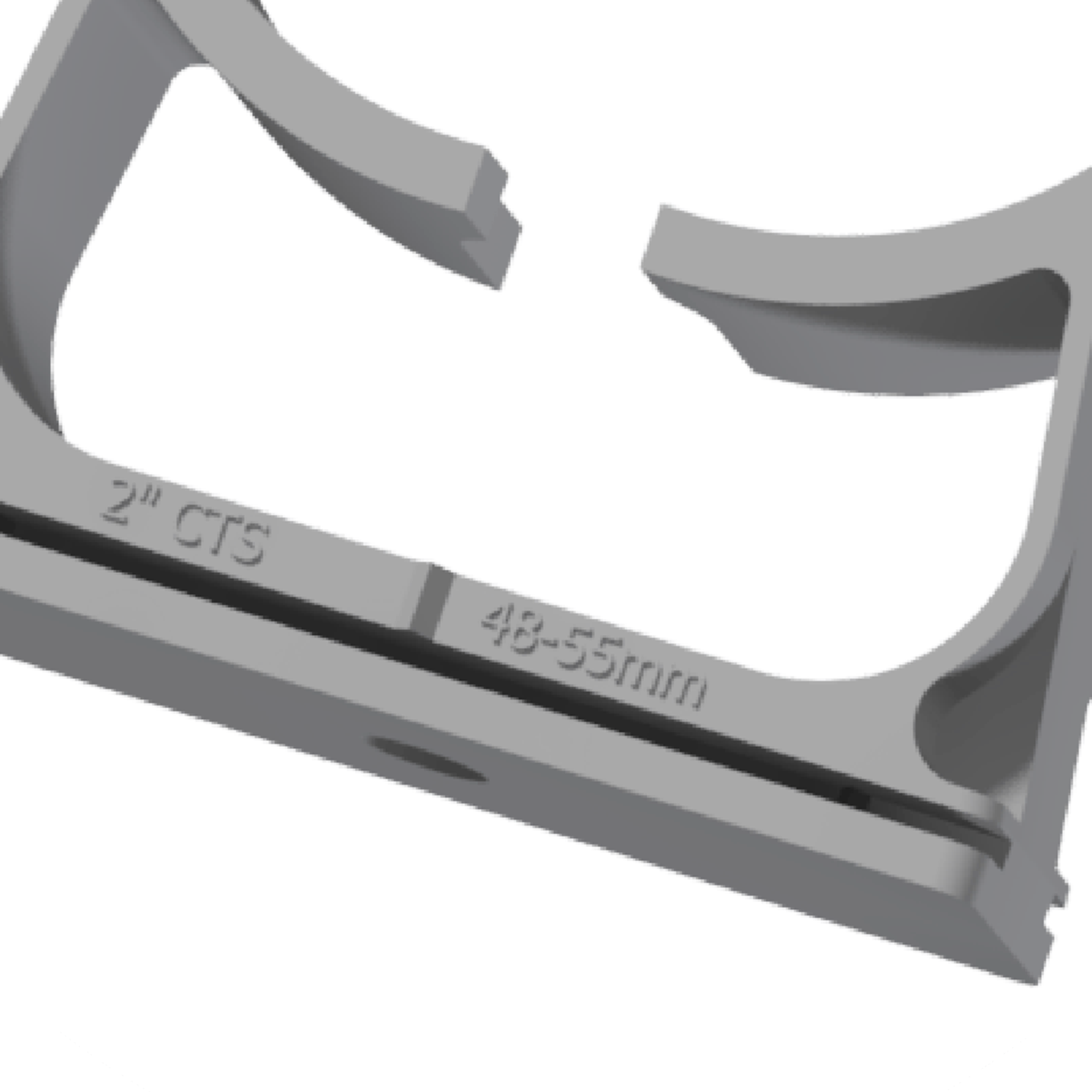

Smart clamps, smart features
Balance easy ergonomics with Smart features ensuring handy and secure installations of surface-mounted conduits.
Smart benefits of STC
• Corrosion resistant

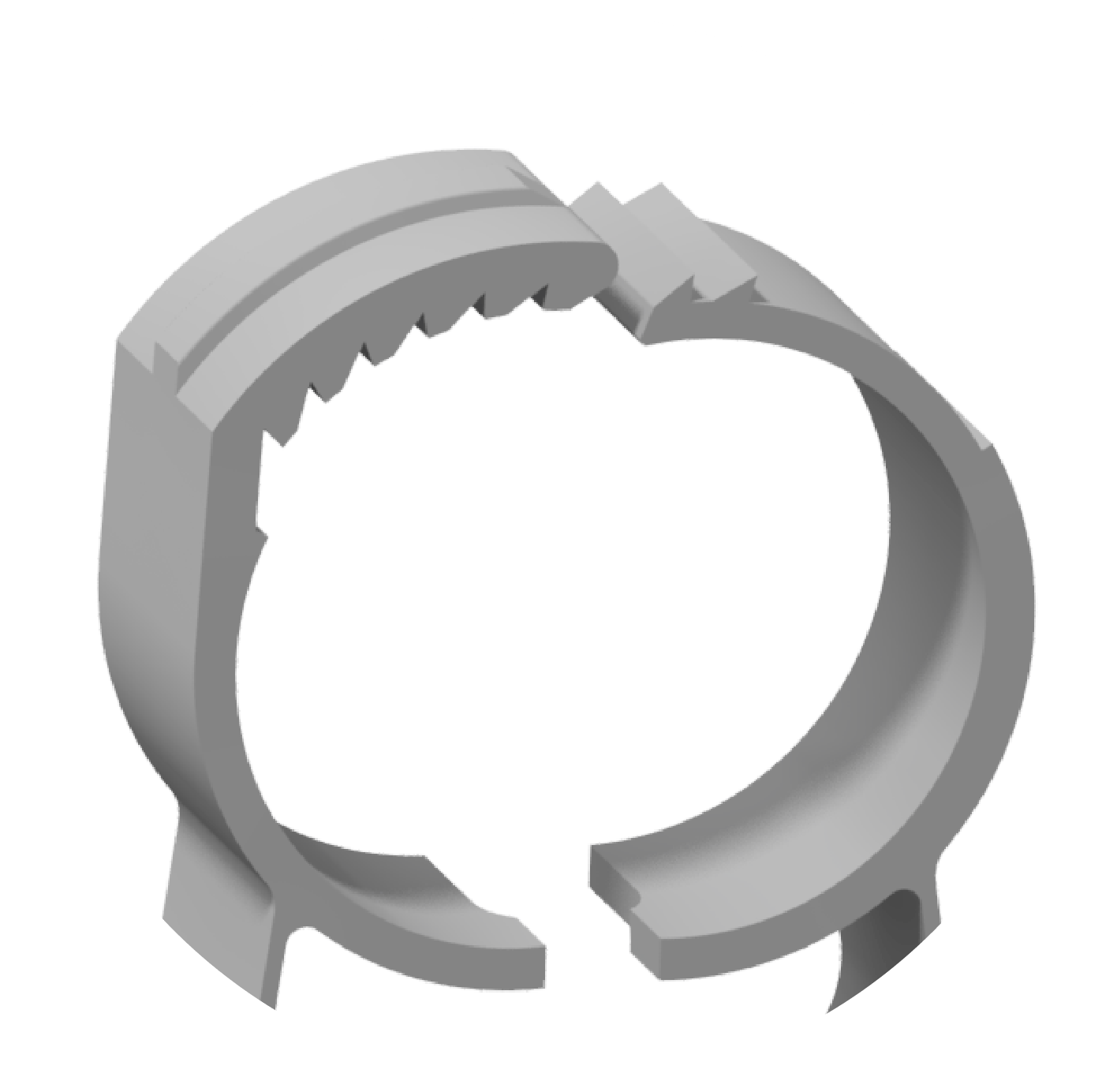

• Versatile: from 1/2" to 2" pipe diameter
• High load capacity: up to 370lbs (165kg)
• Temperature resistance from -23ºF to 230ºF
• Allows expansion and contraction
• Made with high-tech nylon PA6
• UL approved 2239
• Plenum rated according to UL 2043
• Kiwa approved

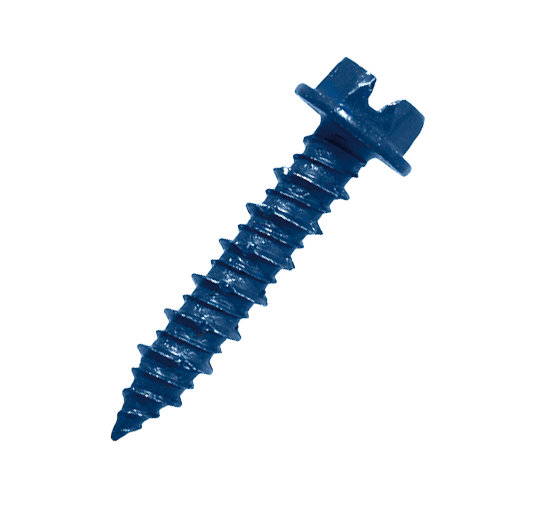

Combine with the BTS T tapcon screw
Pair the Smart Tap Clamp with CELO's new BTS T tapcon screw for high pull-out values and excellent corrosion resistance thanks to its blue water-based polymer coating. Ditch your old tapcons, and experience the difference yourself today.

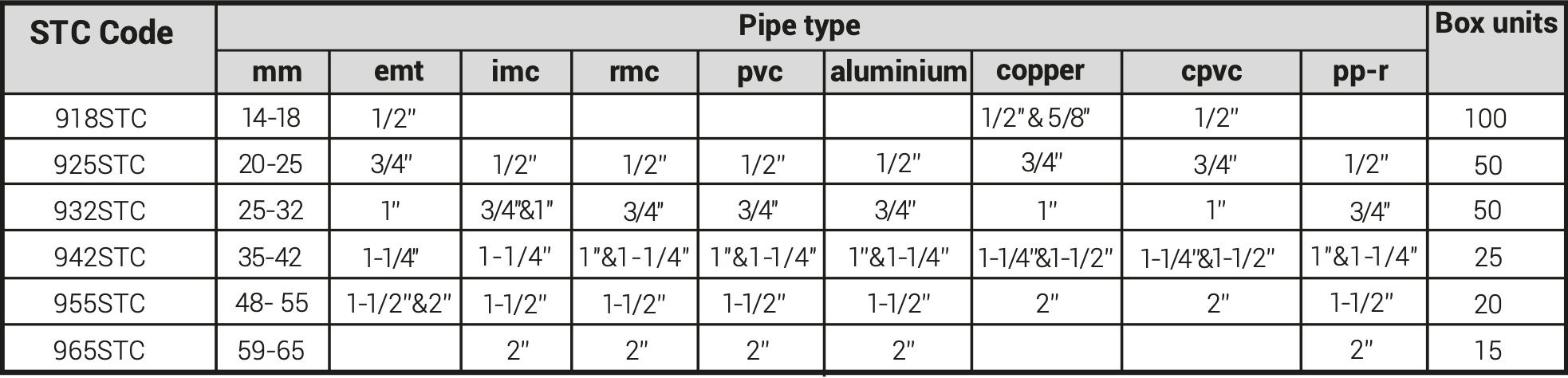

Choose the right clamp for the job
There's a Smart Tap Clamp adapted to your application: electrical conduits, DAS, structured cables, tube cables, low voltage installations, etc. CELO offers you a smart clamp to save you time installing on concrete or drywall.
