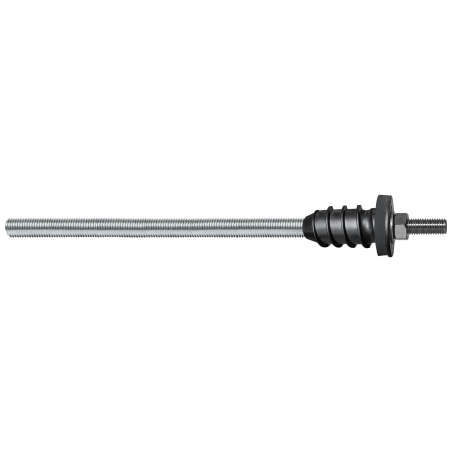

Distance mounting system ResiTHERM® 12

Spacer mounting system for concrete and perforated brick -
with ETA and driving rain proof. Mounting system for medium loads on insulated façades

Product overview

ResiTHERM® 12 makes the difference! The innovative product is fast, driving rain tight, thermally separated, corrosion-resistant, ETA-approved and Made in Germany. The perfect solution for mounting heavy loads to insulated facades without thermal bridges!

One product for all insulation types and thicknesses, e.g. bridgeing insulation thicknesses from 60-300 mm when anchoring in insulated façades made of concrete, from 60-280 mm in aerated concrete and solid brick and 60-250 mm when the insulated wall consists of perforated bricks. Thus allowing for a high application flexibility, also in further base materials.

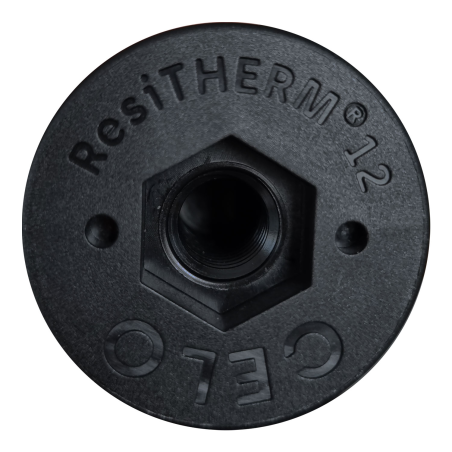

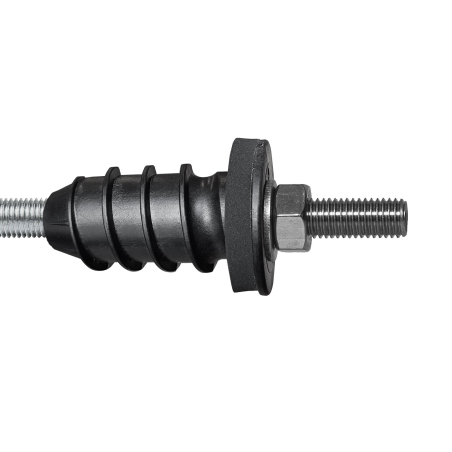

The black thermal separation module eliminates heat bridges efficiently and protects against mould and heat loss. It's pre-assembled, weather resistant EPDM sealing ensures safe sealing against driving rain up to wind force 11(violent storm) and up to 3 mm displacement, tested for watertightness based on DIN EN 1027.

The reliable, durable ETA-tested fixing ResiTHERM® 12 is the product of choice for a large variety of base materials as well as applications:

The heavy-duty innovation is suitable for all common substrates, such as concrete, aerated concrete, masonry (solid and perforated brick) and other building materials and for a wide range of applications such as awnings, canopies, French balconies, satellite dishes, air-conditioning units and many more.

Discover the time and cost savings due to simple and quick installation while ensuring highest quality:

No risk of corrosion due to high steel-quality 8.8, attachment parts made of stainless steel A4 and glass-fibre reinforced nylon, which is characterised by ageing, weather and UV-resistance.

The possibility of subsequent adjustment of the screw-in depth of the M12 threaded stud as well as the M16 threaded rod allows adjustment to the individual installation situation.

ResiTHERM® 12 is available in two versions: zinc plated or A4.

While the external attachment parts M12 are always made of A4 stainless steel, the variants differ for the M12 threaded rod in the wall. For one variant this threaded rod is galvanised, for the other it consists of A4 stainless steel.

Each variant is available per 2 or 20 pieces.

Download documents

View videos

List of references

Filters

Material

Reference

9160RTH122

9160RTH1220

9X160RTH122

9X160RTH1220

Plug length [mm]

295

Suited insulation thickness [mm]

60-220

Material

Steel

Stainless steel A4

Drill hole depth [mm]

80/110/140+e

Drill hole diameter [mm]

14/20

Eff. Anchorage depth [mm]

70/100/130

Thread

M12

Packaging units

Packaging type

Box

4 / 4 references

Applications

Canopies
Air conditioner
Satellite dishes
Building constructions
Sun protection sails
Window bars
Rainwater downpipes

Further specifications

Key features:

Time and cost savings due to simple and quick installation
Reliable, durable, ETA-tested fixing

Thermal separation module eliminates heat bridges efficiently and protects against mould and heat loss
Pre-assembled, weather resistant EPDM sealing ensures safe sealing against driving rain up to wind force 11 (violent storm) and up to 3 mm displacement, tested watertightness based on DIN EN 1027.
Made of robust glass-fiber reinforced nylon

Base materials
