Concrete screw BTS6 B with hex-head

Quick installation of metal profiles and railings to concrete

Product overview

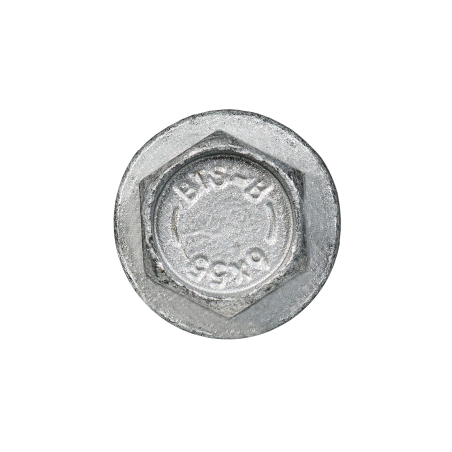

The concrete screw BTS6 B with hex-head is approved for multiple use for non-structural applications in cracked concrete. Head type B is characterised by a hex-head with integral washer (Ø 14 mm).

It is a very fast solution for fixing fastening rails and more, as the special accessories allow assembling in just two steps: drilling and fixing with the same tool. The special adapter and socket wrench can be easily put over the drill bit and that way, all BTS 6 can be mounted in almost no time.

The BTS is ETA-approved for multiple use for non-structural applications in cracked concrete as well as in precast concrete hollow core slabs. Short lengths minimize the risk of hitting rebars during installation.

The zinc flake coating ensures a high corrosion resistance (480H SST). The fire resistance class R 120 stands for higher application security for all BTS with an anchorage depth ≥ 50 mm.

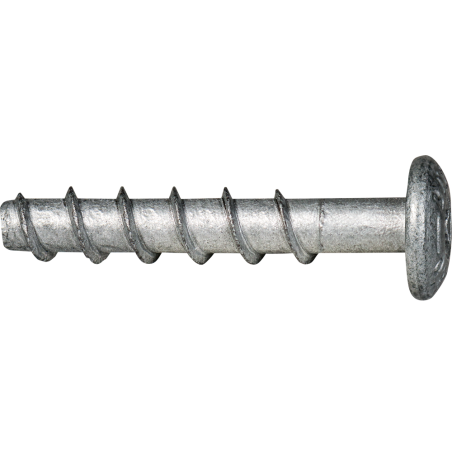

Different head shapes (hex head, pan-head Ø 14.5 mm, pan-head large Ø 19 mm, and hex-head with connecting thread or with internal thread) enable various applications. - View all different concrete screws
