Concrete screw BTS6 PT with pan head

Quick mounting of channels and fastenig rails to concrete

Product overview

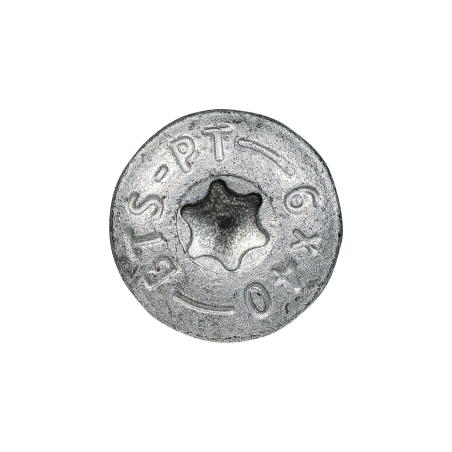

The concrete screw BTS6 PT with pan head is approved for multiple use for non-structural applications in cracked concrete. Head type PT is characterised by a pan head with TX 30 recess and head-Ø of 14.5 mm.

It is a very fast solution for fixing fastening rails and more, as the special accessories allow assembling in just two steps: drilling and fixing with the same tool. The special adapter and socket wrench can be easily put over the drill bit and that way, all BTS 6 can be mounted in almost no time.

The BTS is ETA-approved for multiple use for non-structural applications in cracked concrete as well as in precast concrete hollow core slabs. Short lengths minimize the risk of hitting rebars during installation.

The zinc flake coating ensures a high corrosion resistance (480H SST). The fire resistance class R 120 stands for higher application security for all BTS with an anchorage depth ≥ 50 mm.

Different head shapes (hex head, pan-head Ø 14.5 mm, pan-head large Ø 19 mm, and hex-head with connecting thread or with internal thread) enable various applications. - View all different concrete screws
