Concrete screw BTS6 H with internal thread
Quick mounting of suspensions on concrete ceilings
Product overview
Show more

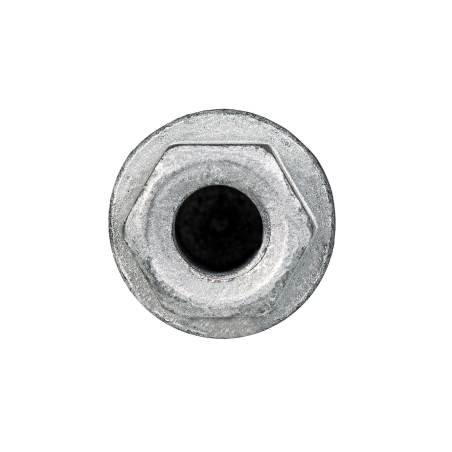

The concrete screw BTS6 H with internal thread is approved for multiple use for non-structural applications in cracked concrete. Head type H is characterised by a high hex-head with integral washer and an internal thread with a length of 10-15 mm.
List of references
Filters
Screw length [mm]
Close
35
50
Drill hole depth [mm]
Close
40
55
Anchorage depth [mm]
Close
35
50
Head diameter [mm]
Close
14
17
Reference
9ZG635M6BTSH
9ZG635M8BTSH
9ZG650M8BTSH
9ZG635M10BTSH
Screw diameter [mm]
7.5
7.5
7.5
7.5
Screw length [mm]
35
35
50
35
Drill hole diameter [mm]
6
6
6
6
Drill hole depth [mm]
40
40
55
40
Anchorage depth [mm]
35
35
50
35
Head type
Hex-head Internal thread
Hex-head Internal thread
Hex-head Internal thread
Hex-head Internal thread
Head diameter [mm]
14
14
14
17
Packaging units
150
100
100
100
Packaging type
Box
Box
Box
Box
A
t
4 / 4 references
Applications
- Fastening rails
- Metal profiles
- Handrail
- Lampposts
- Support profiles
Further specifications
Key features:
- ETA approved for multiple use for non-structural applications in cracked concrete
- Different heads for various applications
- Short lengths reduce risk of hitting rebars
- The BTS is also ideal for temporary fixings as it can be removed completely
- Zinc flake coating (ZnAl) for improved corrosion resistance and higher application security
Base materials
Suitable materials with approvals
Concrete
Precast prestressed hollow core slabs
Other suitable materials
Dense natural stone
Other related products
Filters
Your selection:
How to install
Step 1
Step 2
Step 3
Step 4
Step 1
Step 2
Step 3
